JURECA system details & requirements

JURECA system characteristics

• 1.8 + 0.44 PFlops, #69 in Top500 (Nov'16)
• 1872 compute nodes (Haswell)
• 75 compute nodes, each with 2 NVIDIA K80 GPUs
• 12 visualization nodes, each with 2 NVIDIA K40 GPUs
• Mellanox EDR InfiniBand with fat tree topology


• ~950 users and ~180 projects


• Any guess on user requirements?

User requirements

• Intel compilers

• GNU compilers

• PGI compilers

• ParaStationMPI

• Intel MPI

User requirements

• CUDA

• CUDA-aware MPI

• And of course:

• Tons of libraries

• Compatibility

Designing the User View

Module Naming Scheme

Module Naming Scheme

• Hierarchy of compilers and MPI runtimes
• Modules available are shown in a staged fashion
• Intuitive
• Visible software is compatible


• This is our default Module Naming Scheme

Lmod as modules tool

• Lmod was designed with module hierarchies in mind
• module spider and module key
• Module families (family("compiler") or family("mpi"))

Lmod as modules tool

• Lmod also has other interesting features
• Good support for hidden modules (--show-hidden)
• Cache
• Properties
• Hooks
• ...

EasyBuild Evolution on JURECA

Why EasyBuild on JURECA?

• Designed exactly for this use case
• Production ready
• Easily configurable
• Nice integration with Lmod and different MNS
• Active and dynamic project
• Support for over 1000 packages

Shortcomings

1. Based on monolithic toolchains
• Unnecesary redundancy
2. Auxiliary libraries have their own module
• Swamped module view
3. Couldn't cope with GCC-only software
4. Crytic toolchain names led to confusion and support issues

Implemented enhancements

• Enhanced dependency resolution
• Minimal toolchains
• Enables using software lower in the toolchain hierarchy
• Toolchain hierarchy: Compiler → MPI → Math libraries

Implemented enhancements

• Commom base compiler (GCCcore)
• Enables base layer for compilers, tools and auxiliary libraries
• Toolchain hierarchy: GCCcore → Compiler → MPI → Math libraries

Implemented enhancements

• Support for hidden modules
• Eliminates clutter
• Supported in various ways (command line options, environment variables, easyconfig parameters)
• Can hide toolchains (GCCcore)

Implemented enhancements

• Custom module naming schemes
• Naming scheme-independent software installation directories
• Performance improvements
• Refactoring of MPICH-based easyblocks
• Support for compiler dependent --optarch (since 3.1.0)

Current State in JURECA

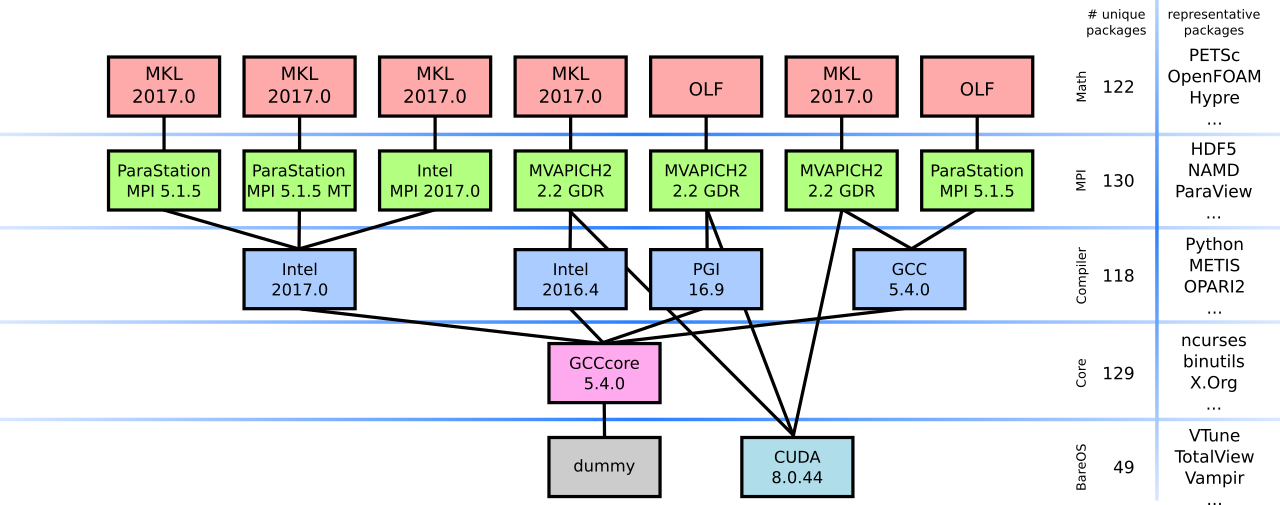

Toolchain hierarchy

User View and Hidden Modules

• Initial user view:
• Compilers (GCC 5.4.0, Intel [2016.4, 2017.0], PGI 16.9)
• Binary tools (VTune, Advisor, TotalView, ...)


• After loading a compiler:
• MPI runtimes (ParaStationMPI, MVAPICH2, IntelMPI)
• Packages built with GCCcore
• Packages built with the chosen compiler


• After loading an MPI runtime:
• Packages built with the chosen compiler and MPI runtime


• If a compiler or MPI is loaded on top of the loaded ones
• Lmod will swap branches and activate/deactivate modules accordingly (using Lmod's families)

User View and Hidden Modules

• There are more than 200 hidden packages in total!
• Close to 400 in stages with duplicated GCCcore

Bundling Extensions

• 1 module per extension is totally excessive
→ Bundles

Bundling Extensions

• Python
• Python (30 extensions)
• SciPy-Stack (22 extensions)
• PyCUDA (6 extensions)
• numba (2 extensions)
• R (365 extensions)
• Perl (217 extensions)
• X.Org (229 extensions)

Finding Software

• module [--show-hidden] available
• Shows software immediately available


• module [--show-hidden] spider something[/version]
• Crawls the module tree looking for something on their name
• Tells what it finds and how to get to it


• module key something
• Crawls the module tree looking for something on their description
• Tells which modules have been found
• Might need to use spider afterwards to find how to get them
• Useful for looking for the contents of a bundle (ie: numpy)

Upgrading and Retiring Software

Ensuring Consistency and Quality

• Allowed to install software in the development stage
• Can test different compilation options, dependencies, functionality, etc
• Anybody in the team can modify any other installation

Ensuring Consistency and Quality

Divergence from Upstream EasyBuild

• Divergence motivated by
• Use of latest versions available at deployment time
• Re-positioning of packages in the toolchain hierarchy


• Most differences are minimal
• Different versions of software
• Different versions of dependencies
• Different toolchains

Divergence from Upstream EasyBuild

Divergence from Upstream EasyBuild

Divergence from Upstream EasyBuild

Demo

Porting to Other Clusters

Porting to Other Clusters

• Besides JURECA, JSC also has JUROPA3 and JUAMS
• Similarities: x86_64, InfiniBand, Red Hat based OS
• Differences: Microarchitecture, different OSes, mix of Xeon Phi and GPUs

• Minimal changes needed to reuse JURECA's setup
• Fix errouneous easyconfigs
• Provide new versions in EasyBuild of obsolete OS packages
• Obviously: Set up the whole environment

Porting to Other Clusters

Common problems

Common problems

• User complains about software X not being available
• My answer: "Your eyes can deceive you. Don't trust them"
• Or: "I find your lack of faith disturbing"
• Lmod's answer: "You underestimate my power"
• Most of the time it is there but
• Hidden
• Bundled
• In a different toolchain

Common problems

• User complains about newly missing modules
• Typically after a stage update
• User specified module version
• Old version is not available in the new stage
• A new one is

Common problems

• User complains about missing libraries
• Typically after a stage update
• Happens when linking against particular library versions (e.g.: libgsl.so.19)
• Old version is not available in the new stage

Common problems

• User complains about missing symbol versions version `GLIBCXX_3.4.20' not found (required by ....)
• Typically when loading certain binary tools
• Happens when the tools ship older library versions (e.g.: libstdc++.so.6)
• Depends on the module load order
• append instead of prepend LD_LIBRARY_PATH?

Common problems

• Component compatibility
• Interactions between compilers
• Intel and PGI need a particular range of underlying GCC versions
• CUDA needs a particular range of underlying GCC/Intel/PGI versions
• This forces us to duplicate compilers and/or GCCcore

Common problems

• Stage updates
• A lot of hassle to:
• Find and update new software versions
• Update dependencies


• New software: new bugs
• Particularly important for compilers and MPI runtimes

Common problems

• Side effect of having a centralized software manager
• Every software/modules problem is an "EasyBuild problem"

• "These are not the droids experts you're looking for"


• Not so frequent anymore
• Need to make clear with the team the different roles

Common problems

• User complains about not being able to unload a sticky module
• My answer: "Use the force"
• module --force purge
• This has never been a problem, but I HAD TO make the pun

Future Work/What to change?

EasyBuild changes

• Automatic upgrades
• Of dependency versions (start during the hackathon!)
• Of software versions
• Linking with -rpath (experimental feature right now)
• Octave extensions


• "Fat" easyconfigs

Possible software management changes

• Reshuffling packages
• Move Python from compiler to GCCcore?
• Tracking module usage
• Lmod hooks and later on XALT?
• Do not preload Stages by default?
• Default module sets
• Preselected packages/views for users that don't care about compilers and MPI runtimes

Deployment in new systems

• JULIA
• Cray system: KNL+OmniPath+NVM+Broadwell
• JURON
• IBM system: POWER8+NVIDIA P100+InfiniBand+NVM


• JURECA Booster
• ~10PFLOPs KNL system
• Integrated with JURECA
• Jobs can simultaneously use Haswell+KNL partitions

Conclusions

• EasyBuild enables to deploy and manage a tremendous amount of software, using a small team

• We undertook significant effort to

• Minimize SW replication

• Provide latests and greatest (at Stage deployment time)

• Provide a meaningful user view

Conclusions

• EasyBuild enables easy porting to similar systems

• Active project that grows everyday

• Still room for improvement

• Hackathon yay!
